  1. 1.25 mm Pitch 180 Degree SMT Wafer Connector
    1. Packing:Tube, PE bag
    2. Delivery time:7-15 days
    3. UL:Yes
    4. ROHS Compliant

inquire now

product details

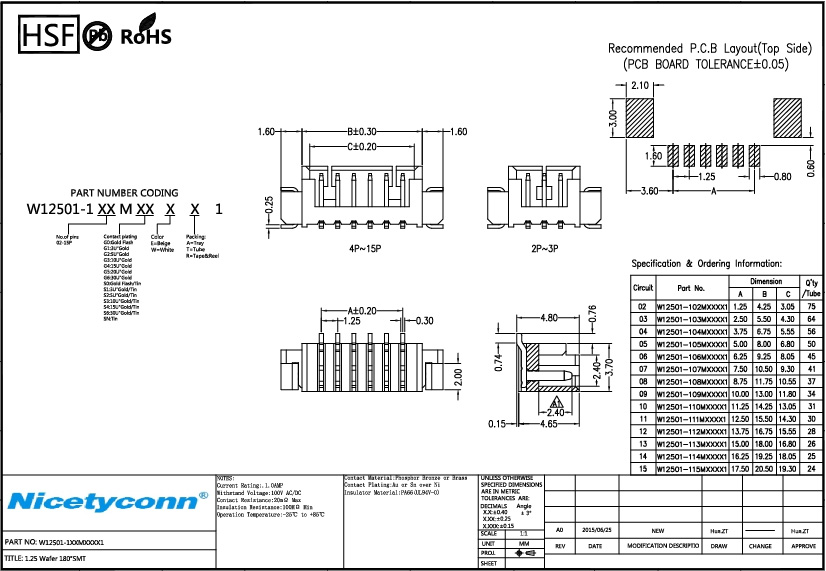

  1. 2D(PDF) Drawing
  2. Approval Specification

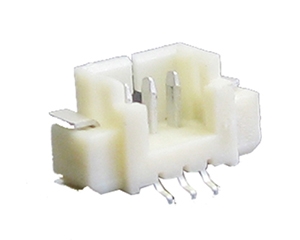

1.25 mm Pitch 180 Degree SMT Wafer Connector

Specification:

Current Rating: 1.0AMP

Withstand Voltage: 100V AC/DC

Contact Resistance: 20MΩ Max

Insulation Resistance: 100MΩ Min

Operation Temperature: -25ºC to +85ºC

Insulation Material: PA66(UL94V-0)

Contact Material: phosphor bronze or brass

Contact Plating: Au or Sn over Ni
