  1. 180 Degree SMT Without Latch Micro Match Socket Co
    1. Packing:Tube
    2. Delivery time:7-15 days
    3. UL:Yes
    4. ROHS Compliant

inquire now

product details

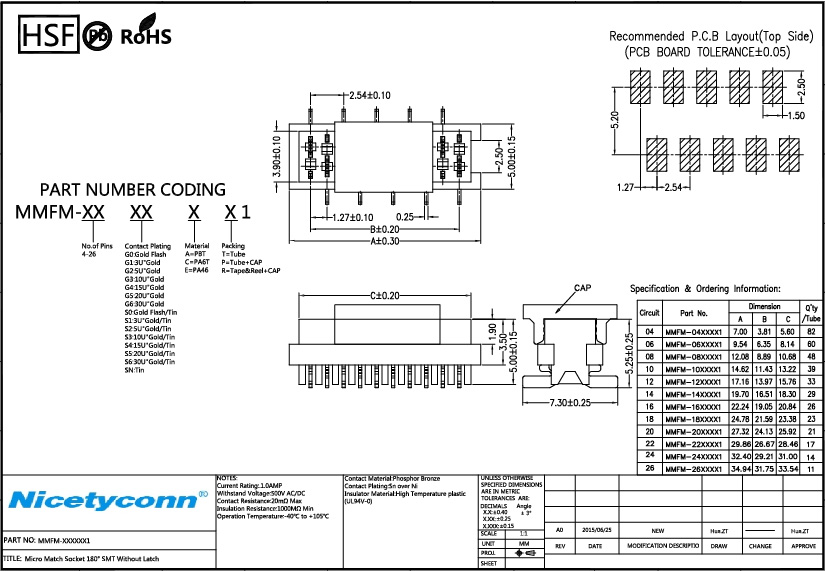

  1. 2D(PDF) Drawing
  2. Approval Specification

180 Degree SMT Without Latch Micro Match Socket Connector

Specification:

Current Rating:1.0AMP

Withstand Voltage:500V AC/DC

Contact Resistance:20mΩ Max

Insulation Resistance:1000MΩ Min

Operation Temperature:-40ºC to +105ºC

Contact Material: Phosphor Bronze

Contact Plating:  Sn over Ni

Insulator Material: High temperature plastic (UL94V-0)
