  1. Picoflex 1.27 Pitch SMT Plug with Peg
    1. Packing:Tube
    2. Delivery time:7-15 days
    3. UL:Yes
    4. ROHS Compliant

inquire now

product details

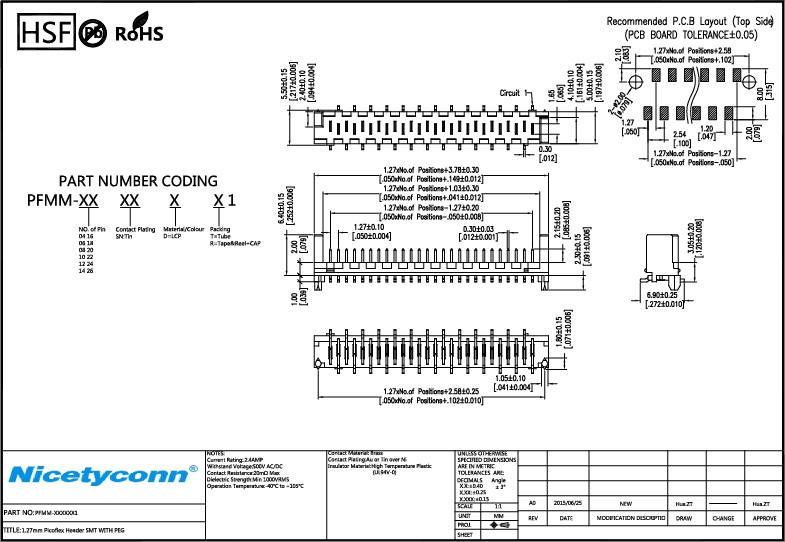

  1. 2D(PDF) Drawing
  2. Approval Specification

Picoflex 1.27 Pitch SMT Plug with Peg

Specification:

Current Rating:2.4AMP

Withstand Voltage:500V AC/DC

Contact Resistance:20mΩ Max

Dielectric Strength:Min 1000V RMS

Operation Temperature:-40ºC to +105ºC

Contact Material: Brass

Contact plating: Au or Tin over Ni

Insulator Material: High temperature plastic(UL94V-0)
